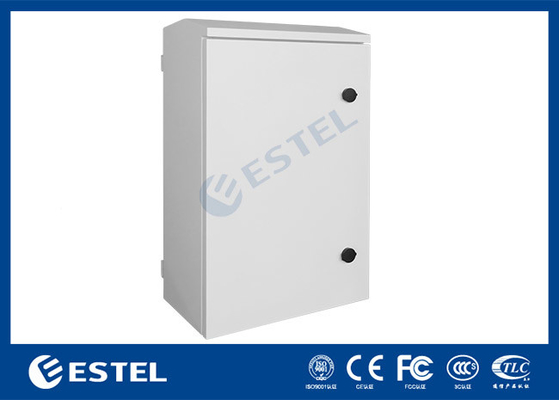

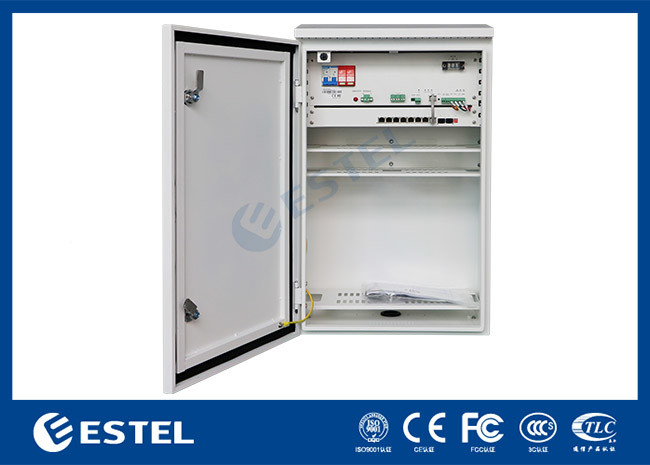

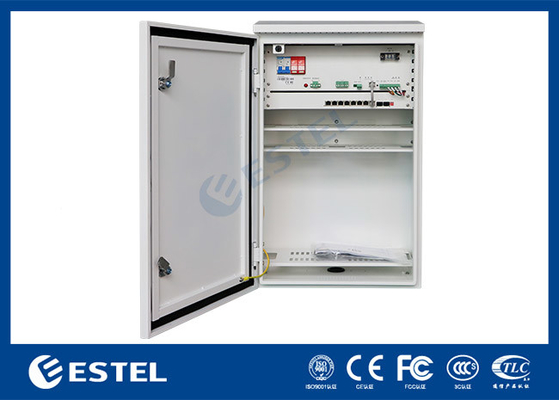

IP55 Smart Surveillance Box With 3 Channels DC 12V Output Support RS485 Interface
Ürün ayrıntıları:
| Menşe yeri: | Shenzhen, Çin (Anakara) |
| Marka adı: | ESTEL |
| Sertifika: | ISO9001, IP55 |
| Model numarası: | ENSP0603 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 |
|---|---|
| Fiyat: | negotiable |
| Ambalaj bilgileri: | ahşap kasa |
| Teslim süresi: | 10 -15 iş günü |
| Ödeme koşulları: | T/T, Western Union, Paypal, vb. |
| Yetenek temini: | Ayda 8.000 set |
|
Detay Bilgi |
|||
| Malzeme: | Galvanizli çelik, ısı yalıtımlı çift duvar | Alarm girişi: | 3 kanal, kuru konnektör girişi |
|---|---|---|---|
| Koruma seviyesi: | IP55 | Kanıt: | toz geçirmez, güneş geçirmez ve yağmur geçirmez |
| Renk: | Beyaz | Alarm çıkışı: | 1 kanal, kuru bağlantı çıkışı |
| Dış boyut: | 700mm×420mm×250mm(Y×G×D) | Arabirim: | RS485/232 |
| Vurgulamak: | 3 Kanal Akıllı İzleme Kutusu,DC 12V Akıllı İzleme Kutusu,RS485 Arabirim Akıllı İzleme Kutusu |
||
Ürün Açıklaması
IP55 Smart Surveillance Box With 3 Channels DC 12V Output Support RS485 Interface
3 Channels DC 12V Output Support RS485 Interface IP55 Smart Surveillance Box Overview

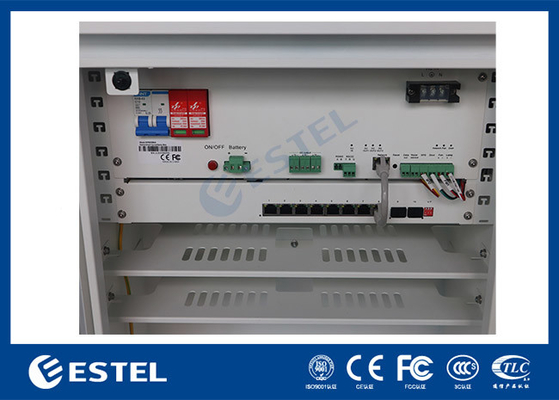

The smart surveillance box can be connected with network switch, IP camera, flash lamp, alarm lamp, infrared detector or other equipment. It can managed all connected equipment and with rich management function. Work with the platform software, It can send alarm message when input AC power off, device power off, optical fiber link down, IP camera link down
3 Channels DC 12V Output Support RS485 Interface IP55 Smart Surveillance Box Feature
- Provide 1 channel AC power input.
- provide 3 channel DC 12V, can remote control and detect output of voltage and current.
- With 8*10/100/1000M PoE downlink ports and 2*10/100/1000M SFP uplink ports.
- Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering.
- The box body adopts waterproof(protection level IP55), anti-rust treatment, suitable for long outdoor use;
- Supports platform software, supports maps, multi product networking, remote control, alarm management, operational dimension, statistical analysis, etc.
3 Channels DC 12V Output Support RS485 Interface IP55 Smart Surveillance Box Specification
| Item |
Specification
|
| AC power IN | AC 100~240V, 50/60Hz, 10A |
| DC12V output |
DC12V output 3 channels, 3A, green terminal slot; Support for remote control of single channel; Support shows the single circuit voltage and the current value; |
| Network switch |
1~8 ports: 10/100/1000Base-T 30W PoE RJ45(IEEE802.3af/at) 9~10 ports: 1000Base-X SFP Working mode: Default mode: normal switch mode. VLAN mode: ports 1 ~ 8 are isolated from each other and can only communicate with the uplink port; restrain the network storm; turn off the flow control. |
| RS485 | Standard RS485 interface |
| RS232 | Standard RS232 interface |
| 10/100 Network port | 1*10/100 Base-TX |
| Alarm input |
3 channels, dry-connector input channel 1 is default for the door open/closed detected; |
| Alarm output | 1 channel, dry-connector output |
| Booster | 12V to 48V, can adjust voltage |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -40℃~85℃ |
| Humidity | 0~95%(no condensation) |
| Size(H×W×D) | 700mm×420mm×250mm |
| Material | metal |
| Colour | white |
| Net weight | 20kg |
