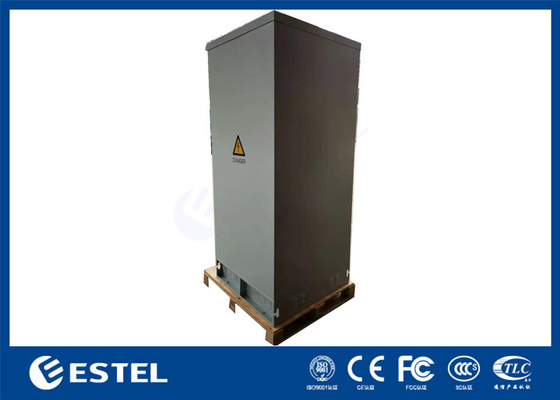

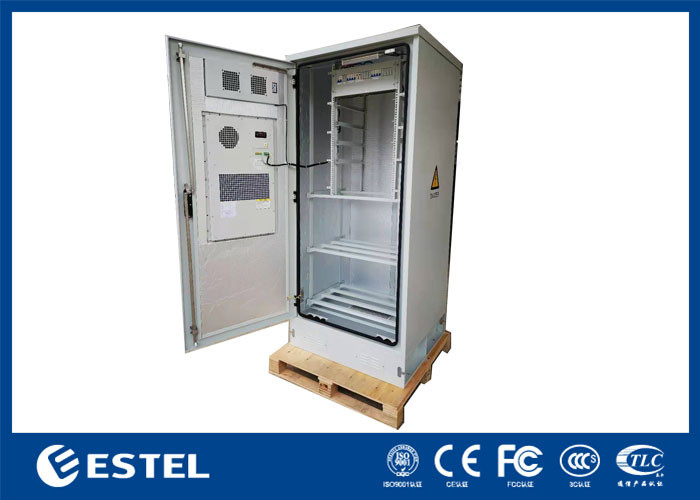

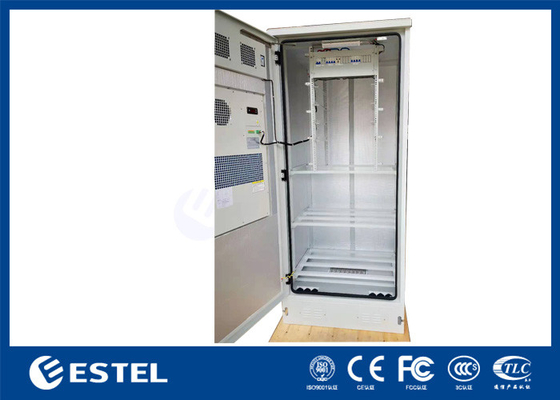

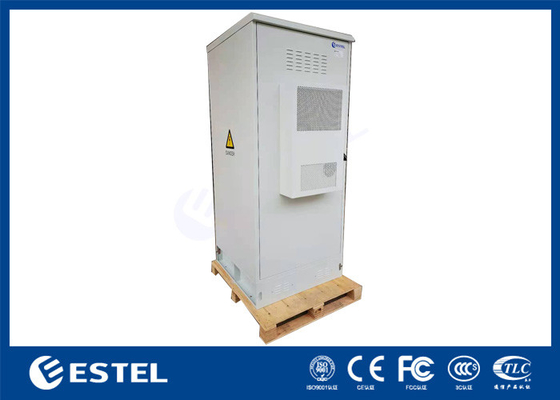

IP55 19 inç raklı elektrik dağıtım ünitesi ve pil rafı ile açık hava telekom kabinesi
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | ESTEL |
| Sertifika: | ISO9001, CE, RoHs |
| Model numarası: | ET9090210C-20U |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 set |
|---|---|
| Fiyat: | negotiable |
| Ambalaj bilgileri: | Paletler ile tahta sandık |
| Teslim süresi: | 4-6 hafta |
| Ödeme koşulları: | Western Union, T/T |
| Yetenek temini: | 4000 ADET/Ay |
|
Detay Bilgi |
|||
| Malzeme: | Galvanizli çelik, ısı yalıtımlı tek cidarlı | Soğutma: | klima ve fanlar |
|---|---|---|---|
| Özellik: | Güç Dağıtım Ünitesi ile | Parçalar: | Anahtarlı LED ışıklar |
| Giriş Koruması: | IP55 | Kapı: | 1 ön kapı |
| Vurgulamak: | 19 inç açık hava telekom kabinesi,Akü raf Dış Telekom Kabineti,IP55 Dış Telekom Kabineti |
||
Ürün Açıklaması
IP55 Outdoor Telecom Cabinet With 19inch Rack Power Distribution Unit And Battery Shelf
IP55 Outdoor Telecom Cabinet With 19inch Rack Power Distribution Unit And Battery Shelf Application:
- Satellite Communication
- Wireless Backhaul
- Cable Television
- Navigation & Positioning
- Military Installation
- Port Security
IP55 Outdoor Telecom Cabinet With 19inch Rack Power Distribution Unit And Battery Shelf Features:
- Front access to the inside equipment
- IP level: IP55
- Standard 19“ rack for installation
- Outdoor anti corrosion powder coating
- The cabinet is dustproof, sunproof and rainproof, can be used in outdoor harsh environment
- Cabinet cooling: 1500w air conditioner
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding
- High integration, compact structure, easy installation and migration on later stage
- Anti-theft three point lock, excellent keyhole protection device
- All the screws&nuts are stainless steel material
- Support full design according to customer’s requirement
- All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A
IP55 Outdoor Telecom Cabinet Specification:
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1)External Dimension:W×D×H 900×900×2100mm (2)One compartment: including 19” rack. (3)With one front door , with three point lock for outdoor cabinet. (4) Material: galvanized steel, single wall with thermal insulation. |
| 2 | Air Conditioner | 1 | Set |
Cooling Capacity: 1500W Power Supply: 110VAC, 60Hz |
| 3 |
Power Distribution Unit |
1 | Set |
Grade B Lightning Proof AC Input: 63A/2P ×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4. Height: 4U |
| 4 | Fan | 2 | Set | DC48V |
| 5 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 6 | LED Lamp | 1 | PC | DC48V |
| 7 | Package | 1 | Set | Wooden Case |
PDU Principle Diagram
Cabinet Diagram:
